Model TR201C Series Terminating Machine

Both-ends crimping machine TR201C

Terminal crimping of extra-fine and shorter wires can be provided in high quality and high speed.

Standard Specification

Model	TR201C
Power supply	3-phase AC 200V±20V 15A(50/60Hz)
Compressed air source^*1	0.4 - 0.5Mpa (4 - 5kgf/cm²) or more 60NL/Min. or more
Driving motor	9 Axis AC servo-control

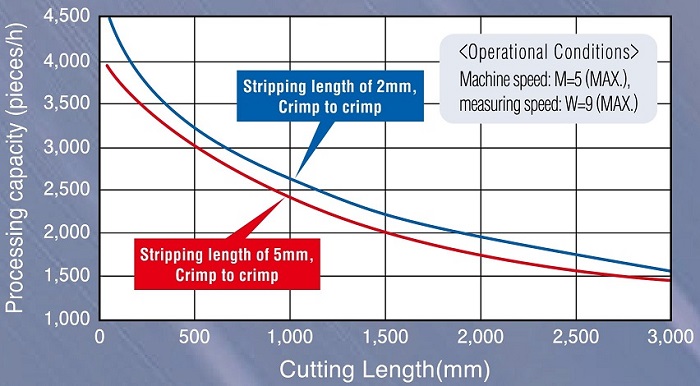

Max. processing capacity^*2	4,500pcs/h
Max. cutting length	9,999mm
Min. cutting length^*3	30mm (crimp to crimp)
Stripping length	Stripping：1 - 15mm(0.1mm intervals) Semi-stripping：1-25mm(0.1mm intervals)
Wire size^*4	Size: AWG22~32 [AWG18~36] (stranded wire) WireO.D.：φ 2.5 - 0.5mm
Press capacity	14.7kN (1.5t)
Crimping terminals^*5	Continuous open barrel, Side/End feeding
Operation temperature	15 - 25°C
Weight	Main body Approx. 420kg, Pre-feeder Approx. 30kg

*1Compressed air with moisture, oil, or dust may cause malfunction of the equipment.
*2The processing capacity may decline due to specification or conditions of processing goods.
*3The minimum cut length may change due to the applicator to use, type of the wire, or processing conditions. By using the optional special clamp, shorter ones may be processed. Contact us for details.
*4Cables thicker than AWG22 or thinner than AWG32 may be processed by using the urethane roller or special clamp. Contact us for details.
*5As for end feed terminal, the optional reel hanger for end feed his necessary.
