TRD301CWPA / TRD301CWPSA

Model TRD301C Series Terminating Machine

Both ends seal insertion and both ends automatic wire terminating machine TRD301CWPA (equipped with 4-seal unit on both ends)
Single-sided seal insertion double-ended automatic wire terminating machine TRD301CWPSA (equipped with a single-sided 4-series seal unit)

Single-end seal insertion/Both-ends seal insertion
Newly developed seal insertion unit

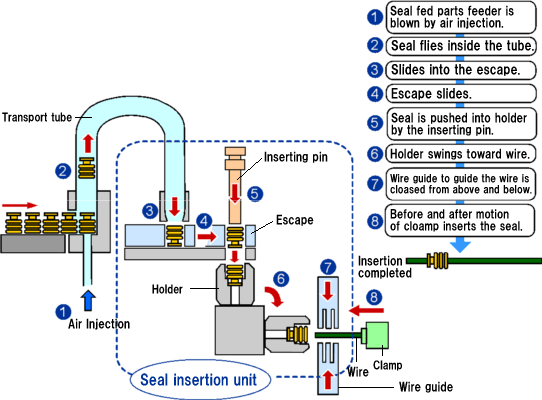

Figure for seal inserting operation

Single-end seal insertion/Both-ends seal insertion

Single-end seal insertion: 3,000 pieces per hour at maximum (Single-end seal insertion and both-ends crimp processing: cutting length of 100 mm)

Both-ends seal insertion: 2,800 pieces per hour at maximum (Both-ends seal insertion and crimp processing: cutting length of 100 mm)

* Shown machine is equipped with various options.

New seal insertion unit

Photo of newly developed seal insertion unit

Four-module seal unit: Total of 8 different seals, four on each side of the machine and can process both seal insertion simultaneously at any time. Seals are pre-program can be selected automatically by setting up the operation data.

Seal inserting speed was increased greatly: The speed was increased by 43% as compared to the conventional machine (TRD111WPA). Wire can be supported without being nipped because the wire guide mechanism is controlled by servo-motor drive system. Furthermore, the operation speed was enhanced greatly.

Stabilized high-speed processing by means of stocking mechanism: The stocking mechanism, which feeds the next seal while the inserting operation is performed in the main body, makes delay of air transport difficult to affect the machine processing speed, and realizes stabilized high-speed processing.
