Features of TRD401 Series

Model TRD401 Series Terminating Machine  (End of sales)

End of sale

両端端子打機TRD401
  • Newly developed belt-feed length measurement unit
  • Full safety cover over all moving parts
  • User friendly operation interface
  • Customizable program for operate limitation
  • Quick troubleshooting
  • Consumables management function
  • Terminal Crimping Monitor (TCM)
  • Wire chopper

Newly developed belt-feed length measurement unit

新開発 エンコーダフィードバック制御

Support for smaller gauge wires

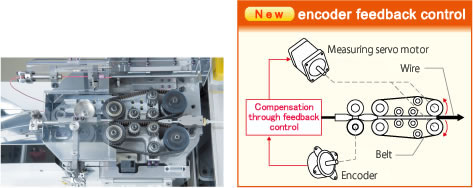

  • Belt feeder transports wire by sandwiching them, and make a quickly and stably feed delicate small gauge wires.
  • New encoder feedback control has been added to measure and adjust wire length in real time increasing cut length accuracy.

Full safety cover over all moving parts

両端端子打機TRD401の写真

Safety is another crucial aspect of performance.

  • In order to keep operators safe, all TRD401s come standard full cover for all moving parts.

User friendly operation interface

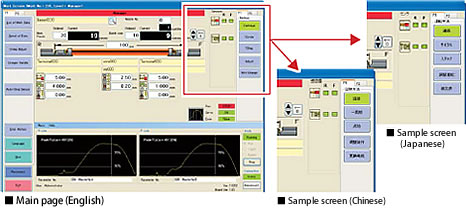

メイン画面、中国語表示画面、英語表画面

Bright, colorful display for quick and efficient work

  • The display language can be easily changed between English, Japanese, Chinese, and Spanish.

Customizable program for operate limitation

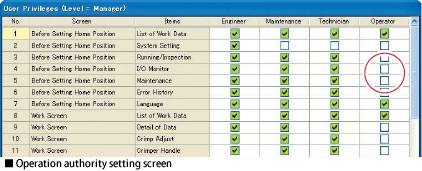

操作制限設定画面

The ability to freely customize operation authority can be done from monitor screen.

Quick troubleshooting

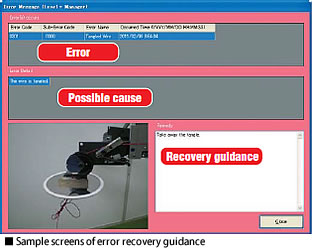

エラー復旧のためのガイダンス画面例

Shorten recovery times from trouble.

  • Error occurs; the location photo is shown on screen as well as possible causes.
  • Recovery guidance makes restoration work proceed smoothly.
  • Up to 1,000 production errors with time can be stored in hard disk memory on PC.

Consumables management function

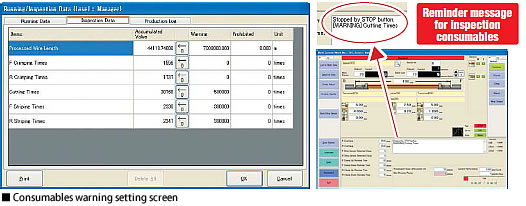

消耗部品警告設定画面

Function to prevent quality detection

  • Automatic reminder message, notify the operator of the next inspection timing for consumables such as cutter blades and measurement belts.
  • If inspection times are preset, the machine interlock function is triggered after a warning message.
  • Guidance messages are provided after warning messages.

Terminal Crimping Monitor (TCM)

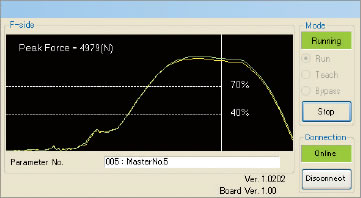

ターミナルクリンピングモニタ画面

The TCM was developed by ShinMaywa to judge whether the termination is good or not.

  • The TCM detects crimping pressure and makes judgments.
  • Detected waveforms are superimposed over the reference waveform in real time.
  • Registered waveforms and setting data are automatically called up with processing data.

Wire chopper

バッドワイヤチョッパの写真

The chopper cuts off the terminal heads that are judged as bad by the TCM.
