TRIADEO® Smart Hydrogen Sulfide Countermeasures for Installation in a Glove Box

What is TRIADEO® Smart?

Countermeasures against odors around the glove box (countermeasures against smell harassment)

リニアイオンソース3

Features

  • Simply install it in a glove box to easily remove hydrogen sulfide or organic solvents.
  • Compact design with a height of less than 30cm, saving space with its small size

Usage

  • Sulfide-based solid electrolyte
  • electrode material
  • Assembly/disassembly of all-solid-state batteries
  • Battery Stress Test
  • Inside a glove box where low concentrations of hydrogen sulfide are generated

Standard Specification

Processing air volume 4.2m3/h
Weight Approximately 1.6 kg
Size W86mm×D86mm×H290mm
Power supply 4.5W (5V, 0.9A) 100V → 5V AC adapter included
Filter Intake side, exhaust side
Remarks Type A: For hydrogen sulfide
Type B: For organic solvents

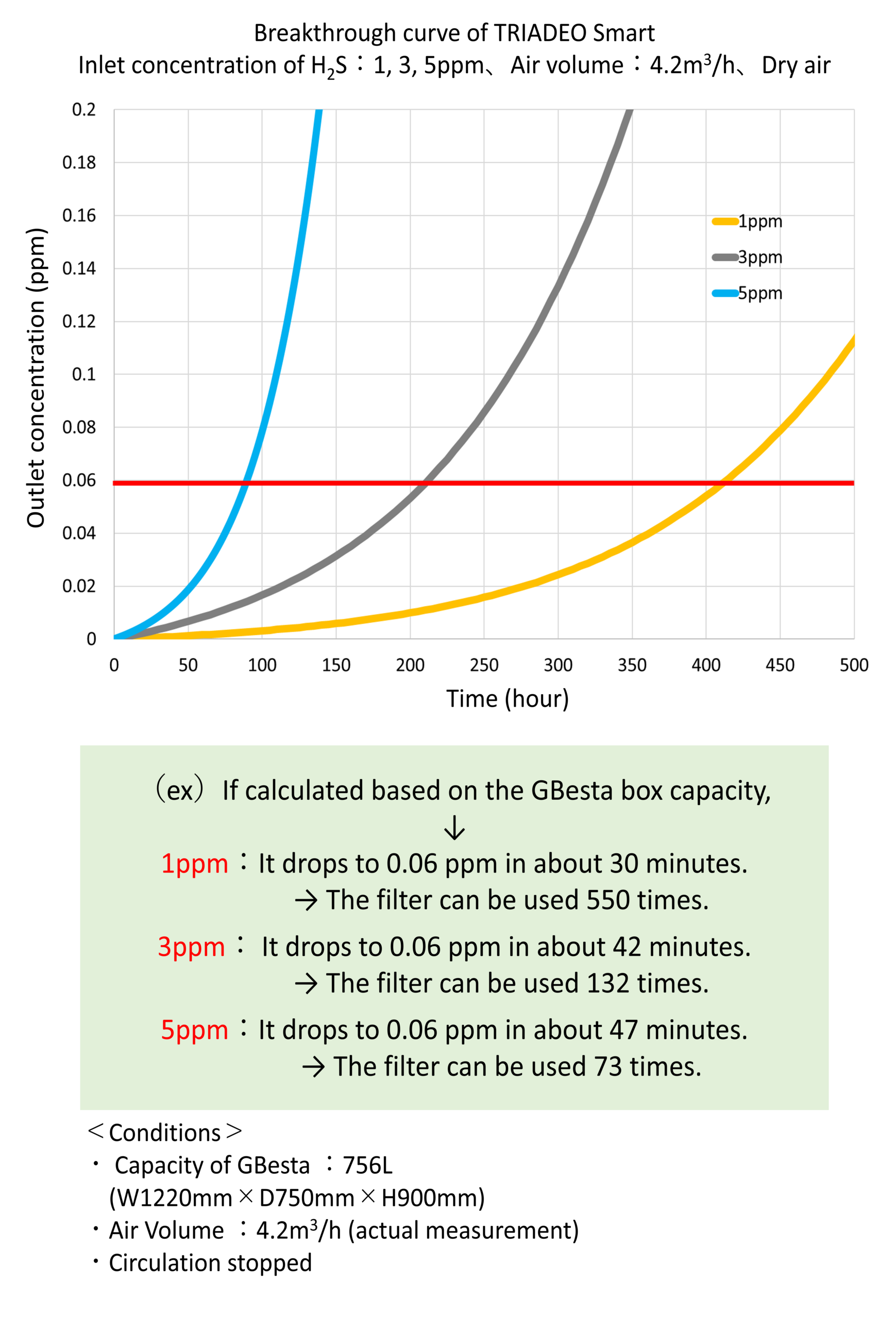

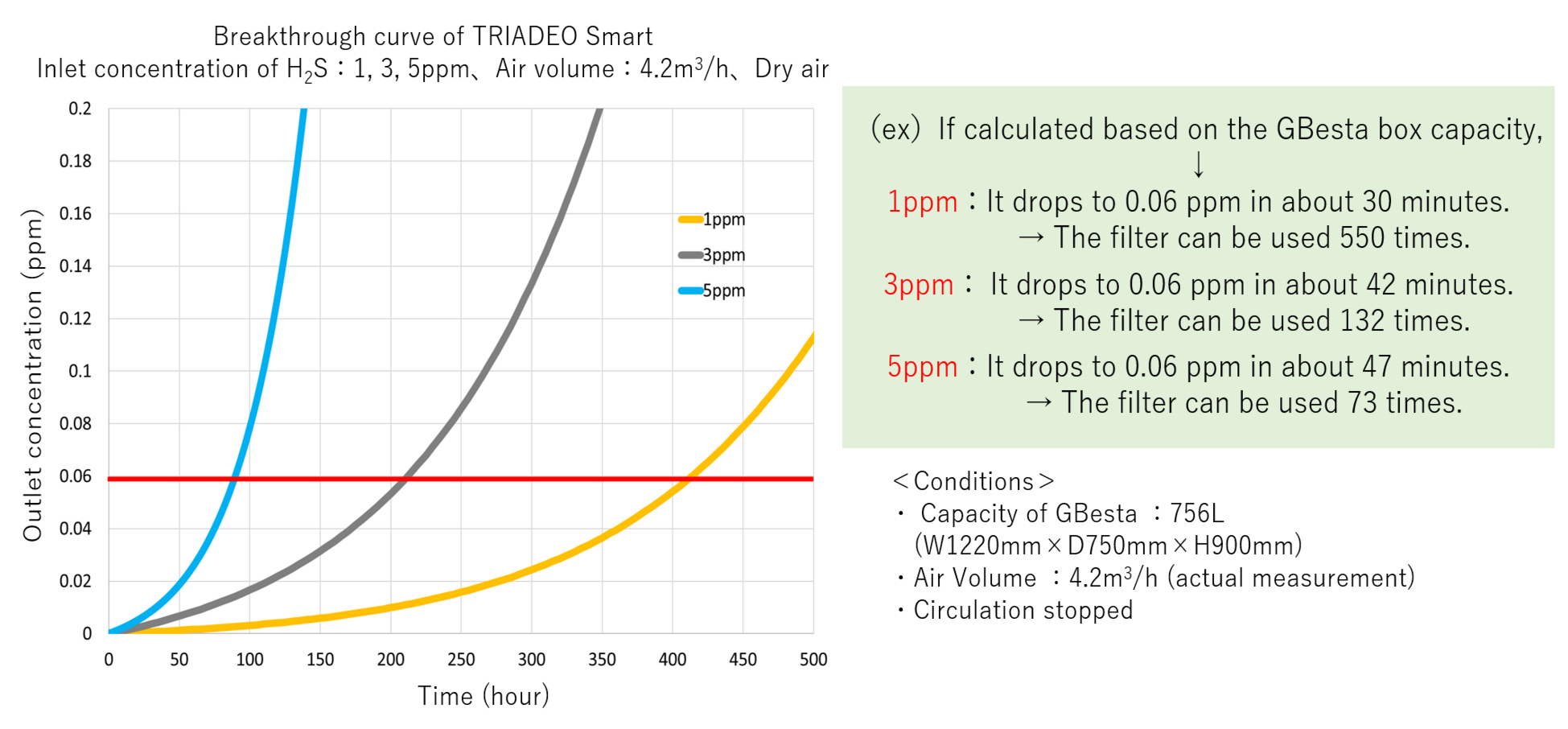

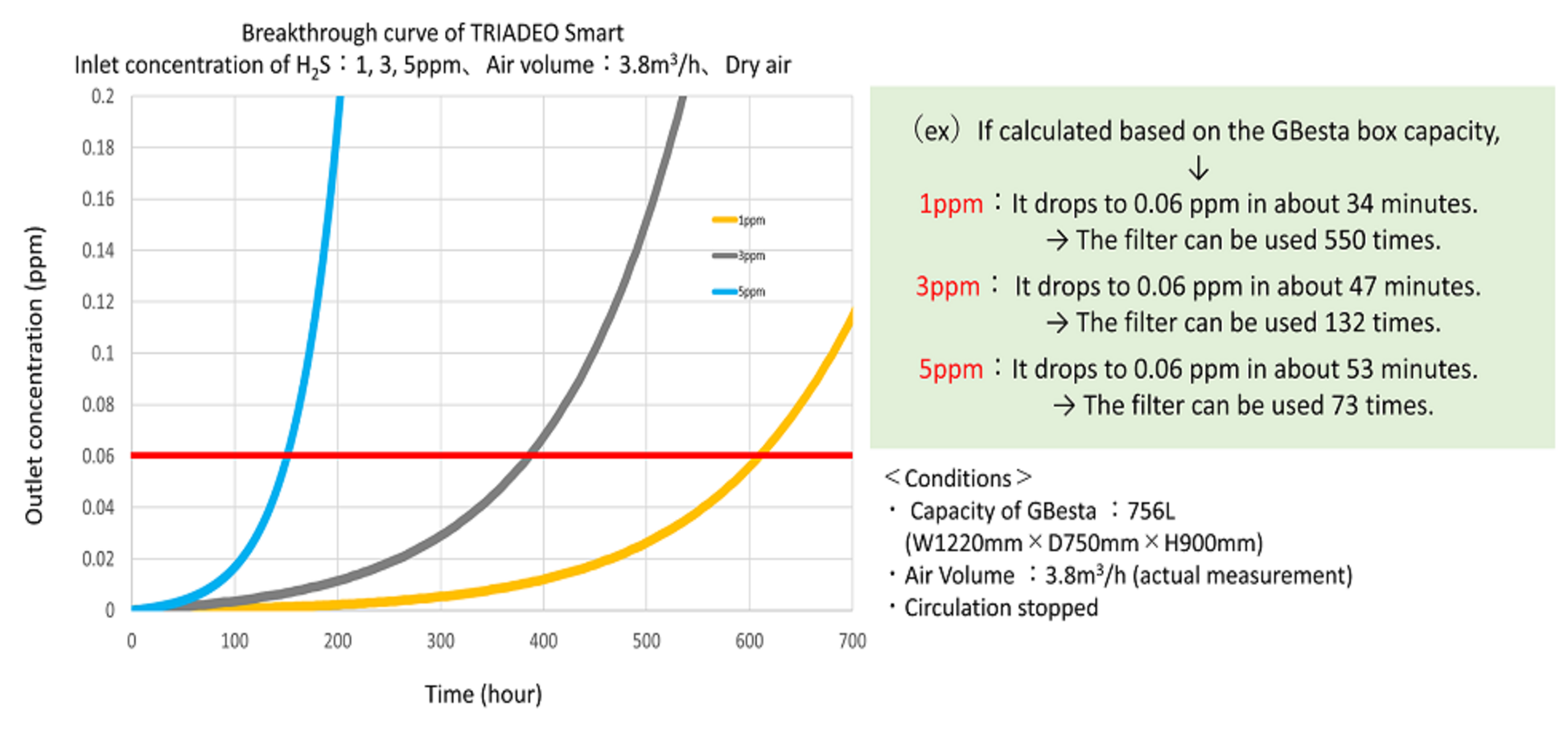

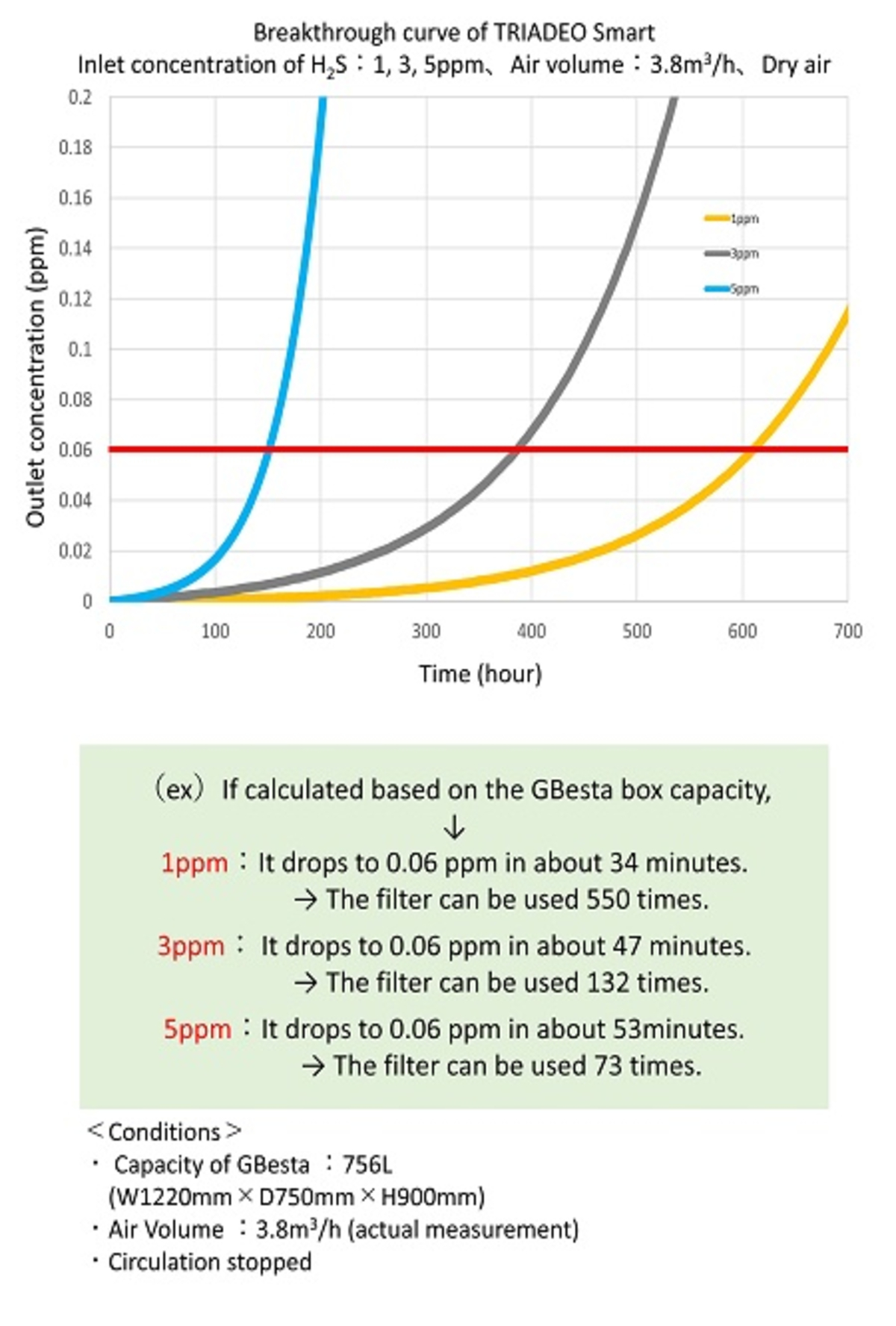

TRIADEO_Smart_graph    TRIADEO_Smart_graph
