BCL Series
Major dimensions

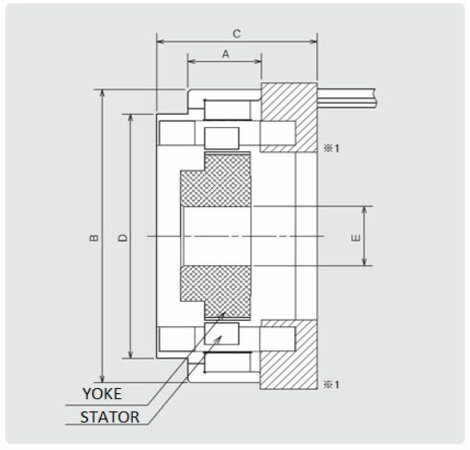

Dimensions
(without Hall-effect sensor, Temperature sensor)
| BCL05-08 | BCL06-25 | BCL09-25 | |
|---|---|---|---|
| Housing total length A | 13 | 33 | 33 |
| Housing outer diameter φB | 54 | 65 | 97 |
| Overall length C | 26 | 47.5 | 51 |
| Coil outer diameter8 φD | 46 | 55 | 84 |
| Rotor hollow diameter φE | 14 | 20 | 45 |
Please contact us regarding the housing shape.
- *1The slanted line part is the mounting portion of the connections and sensors.
Specifications
| BCL05-08 | BCL06-25 | BCL09-25 | |
|---|---|---|---|
| Number of poles | 8 | 8 | 8 |
| Rated rotation speed N [r/min] | 20,000 | 15,000 | 3,000 |
| Rated torque T [N・m] | 0.02 | 0.2 | 0.5 |
| Motor constant KM [N・m/√W] | 0.014 | 0.086 | 0.173 |
| Torque constant Kt [N・m/A] | 0.012 | 0.096 | 0.261 |

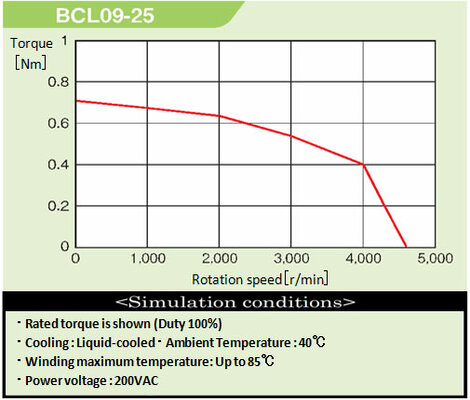

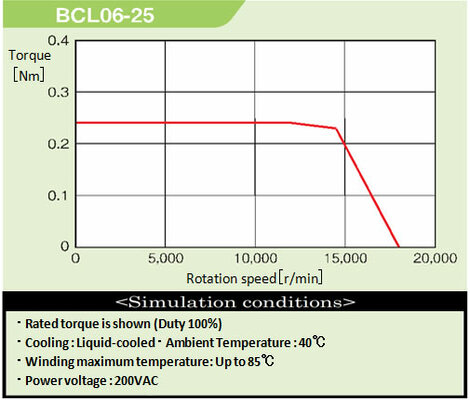

Running torque curve
Simulation conditions are an example. We will conduct individual simulations based on the required specifications.
