Original mechanism and durable structure!
ShinMaywa Screen series!

Automatic bar screen

BS series

Slit (unit: mm)

1.0

2.0

2.5

5.0

10

20

30

50

Output: BS-H:25W, BS-N:100W

VS series

Slit (unit: mm)

20

30

50

Output: 100W VS-H:25W

Wedge wire screen

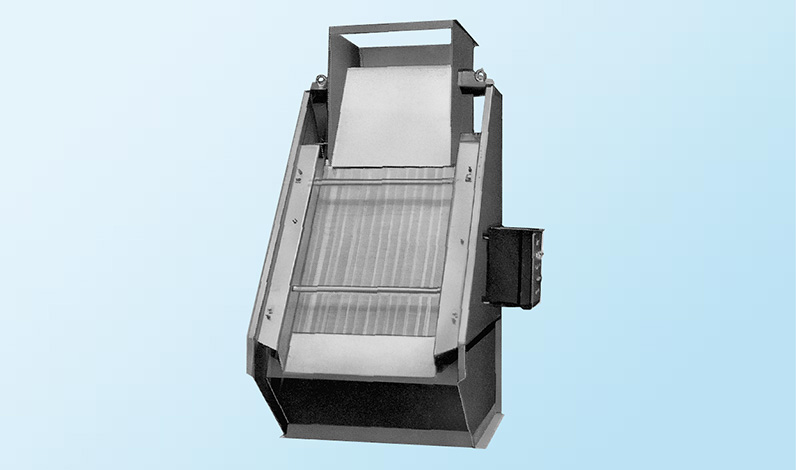

SB series

Slit (unit: mm)

0.25

0.5

0.75

1.0

1.5

2.0

Output: 100W 220SB:200W

S series

Slit (unit: mm)

0.25

0.5

0.75

1.0

1.5

2.0

Output: 100W VS-H:25W

Applications

BS series, VS series, S series, SB series

Removing suspended solid in waste water treatment facilities

Installation example

*Details: Refer to instruction manual.

BS series, VS series

This type is to be installed in channel

SB series, S series

This type is to be installed in the piping arrang
