Aeration agitation equipment JSA-Contributing to equipment, installation, maintenance, and overall cost reduction

Strong agitation

Powerful jet agitation from the bottom of the tank enables uniform agitation within the tank - Able to select at low power

Noise countermeasures not needed

No need to be concerned about noise caused by underwater installation

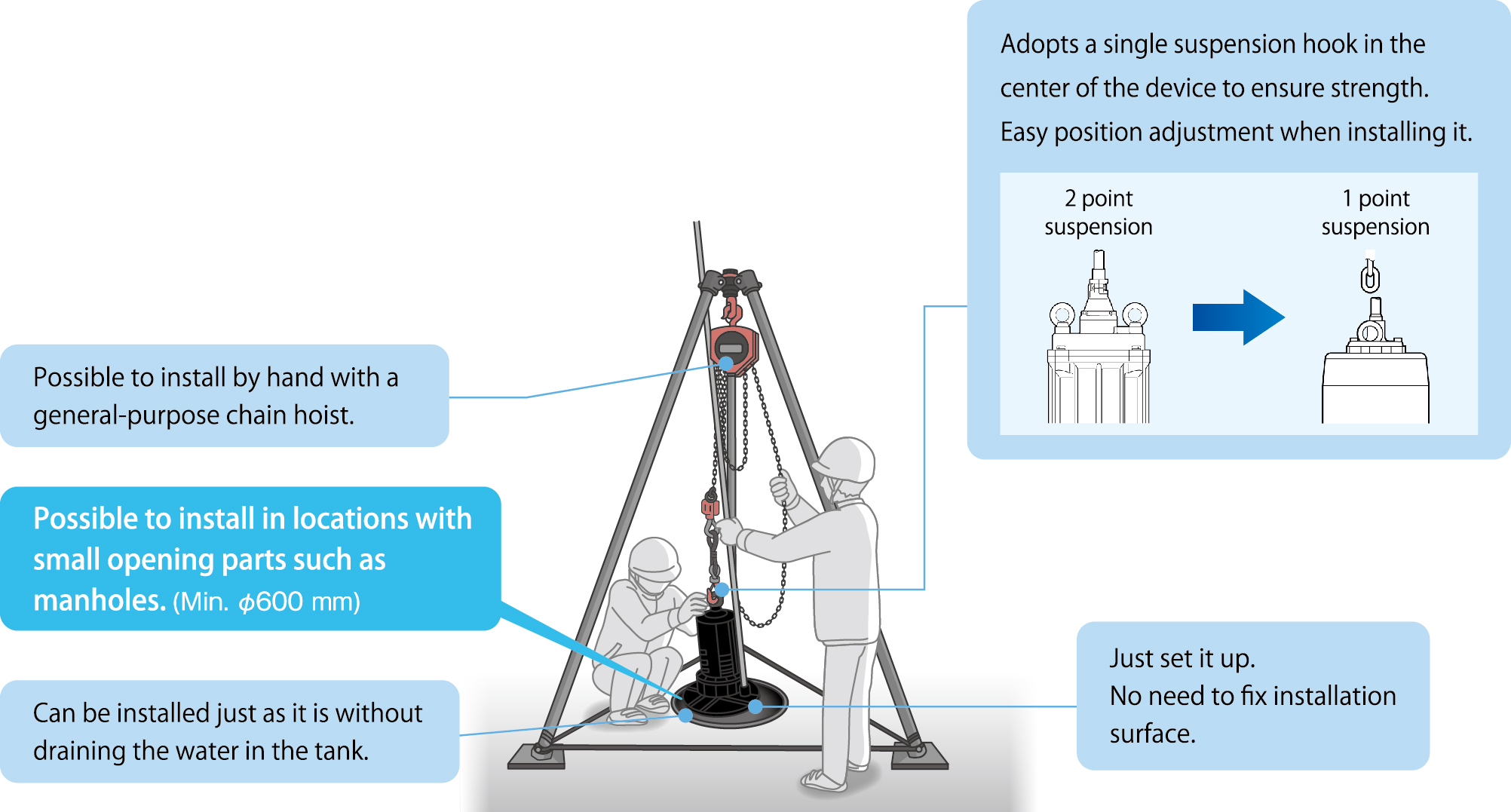

Easy installation

Fixing bolts not needed - Just place the aerator inside the tank

Outstanding features

Stable operation

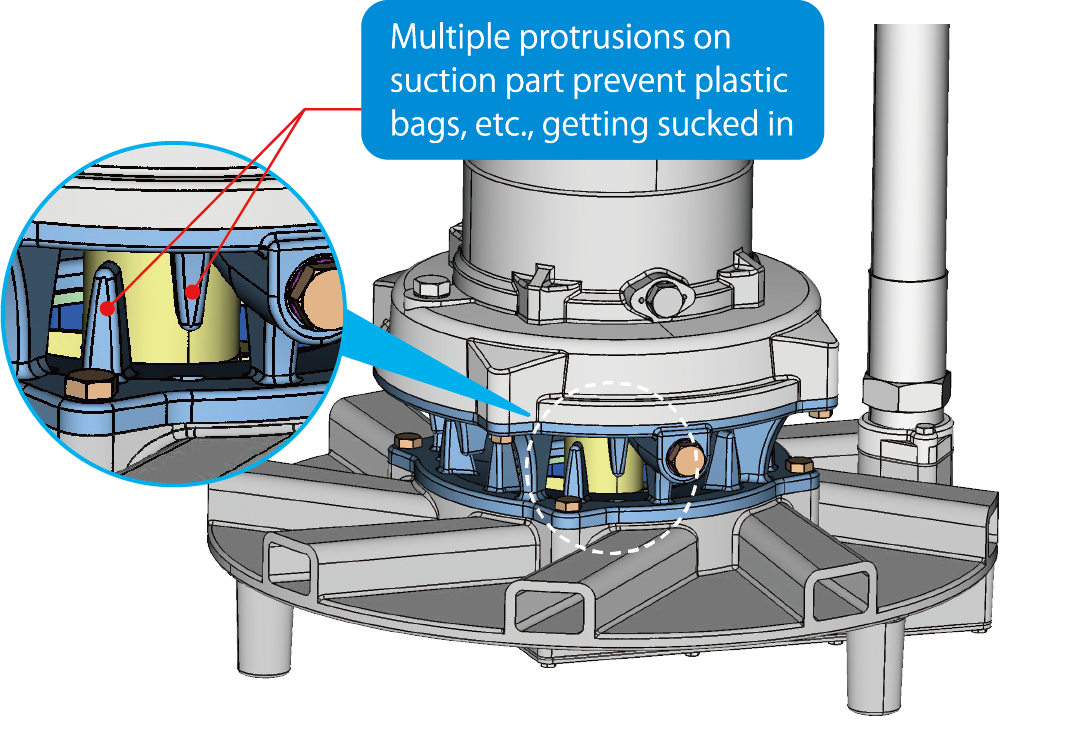

Strainer prevents entry of foreign substances.
Few obstructions for impeller.
*Excluding model JSA15

Long service life

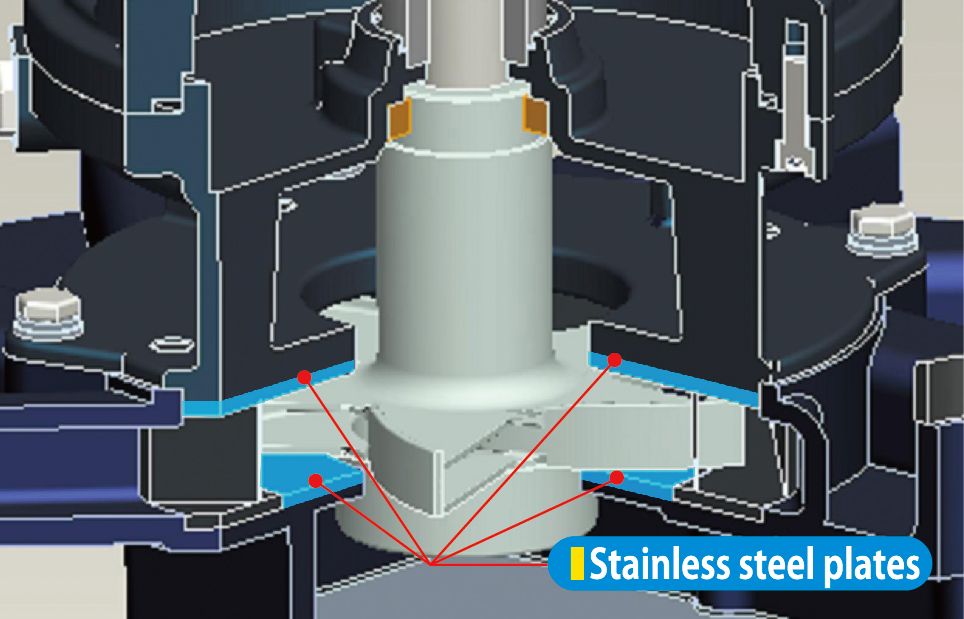

The top and bottom internal surfaces of the housing are lined with stainless steel plates. This improves abrasion resistance and suppresses the reduction in air flow performance due to degradation over time.
(Excluding Model JSA15)

Simply connect the air intake pipe and place the unit in the tank to get the unit up and running.
By placing the water inlet and outlet on the side, we have achieved a low height and a low center of gravity for a stable installation balance.
(Height/bottom surface diameter≒1/1) We have achieved weight reductions and reduced time for installation and maintenance by optimizing our design.

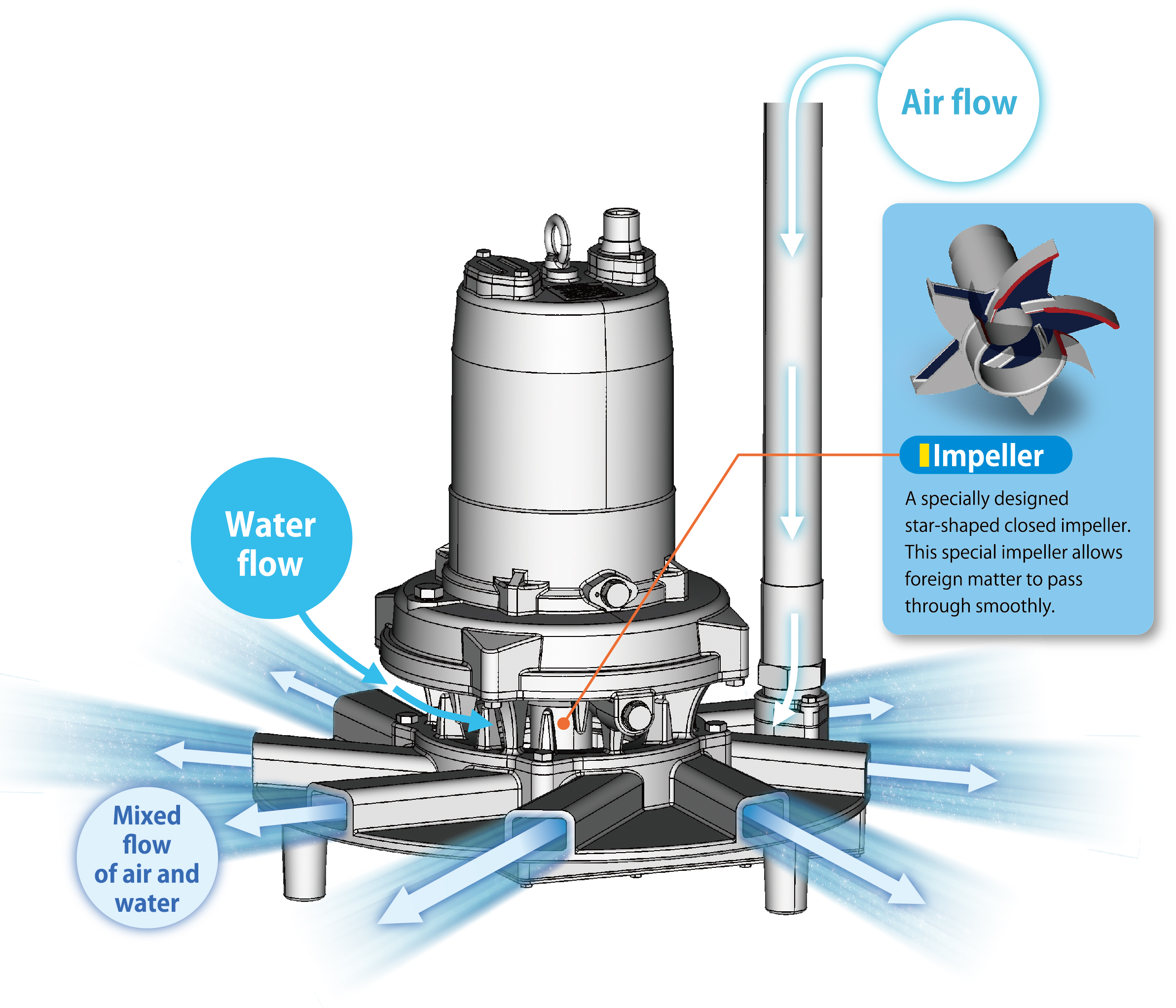

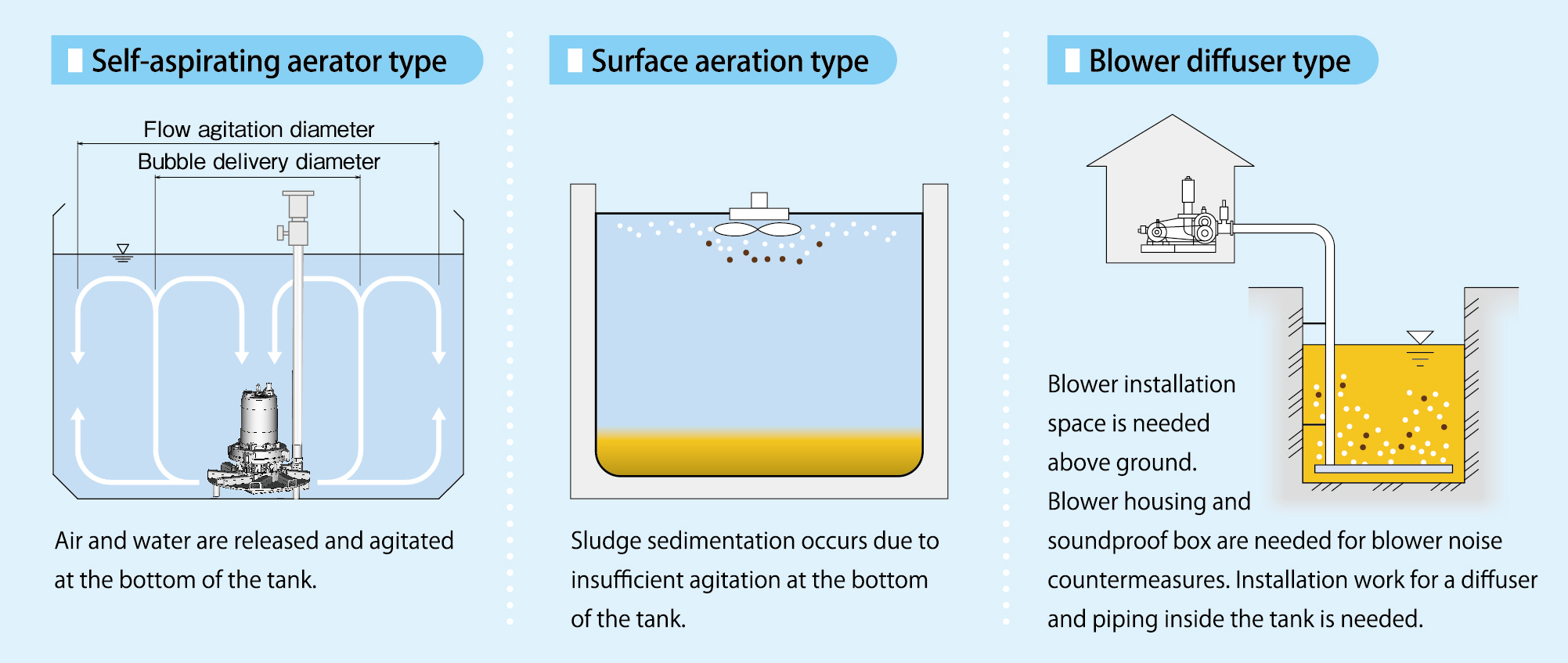

For small, shallow tanks with a small throughput, aeration is possible with "top aeration", however as aeration capacity is insufficient for deep tanks, using a submersible aerator is effective. A submersible aerator sucks in water, mixes air inside it, and then releases it. As it is released at the bottom of the tank and as there is agitation, strong convection occurs even in deep tanks and this leads to an aeration effect.
*In addition, in comparision to the blower diffuser type, installation and maintenance are more simple and a blower installation space or blower housing above ground are not necessary.
