Product Information
Refuse Compactors (Garbage Compactor Trucks)
Refuse Compactors (Garbage Compactor Trucks)
Waste Compaction for Efficient Waste Transport

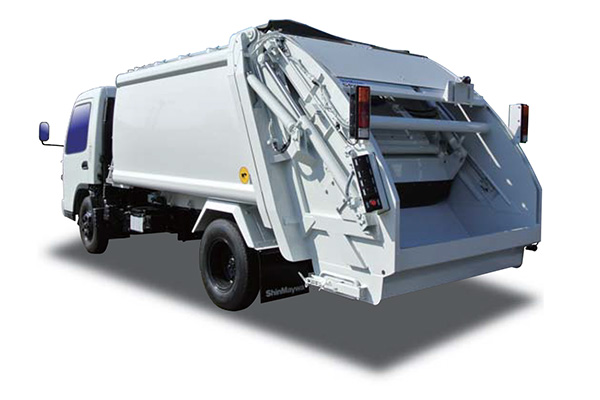

ShinMaywa's G-PX is a lineup of garbage compactor trucks for the safe and efficient collection of waste. The advanced level of features for loading, compacting and transportation are sure to meet your needs. Making the collection process easy and efficient has made G-PX models popular the world over.
G-PX
Our lineup of garbage compactor trucks with a range of loading capacities.
[Specifications]
| Model | GT042 | GT053 | GT063 | GT073 | GT084 | GT105 | GT127 | GT200 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Body capacity (m3) | 4.3 | 5.4 | 6.8 | 7.4 | 8.6 | 10.2 | 12.2 | 20.0 | ||
| Hopper capacity (m3) | 0.6 | 0.7 | 1.0 | 2.2 | ||||||
| Plate thickness (mm) | Body | Roof*1 | 2.1 | 2.3 | ||||||
| Side*2 | 2.7 | |||||||||
| Floor*1 | 2.7 | 3.2 | ||||||||
| Ejection plate*1 | 2.1 | |||||||||
| Hopper | Bottom*3 | 6.0 | 8.0 | |||||||
| Side (upper) *3 | 2.1 | 2.3 | ||||||||
| Side (lower) *3 | 4.5 | |||||||||
| Press plate*3 | 4.5 | |||||||||
| Loading time [one cycle] (sec) | 10-11 | 13 | 26-28 | |||||||
| Gate width (mm) | 1,430 | 1,680 | 1,700 | 2,000 | ||||||
| Sewage Scatter Prevention Rubber | Equipped | |||||||||
| Hopper Alarm (rising/descending) | Equipped | |||||||||
| Discharge time (sec) | 17 | 18 | 55 | |||||||
| Sewage Tank (L) | 80 | 95 | 125 | 140 | ||||||
| Anti-rust paint | Electro-Deposition paint | Anti-rust paint | ||||||||
| Emergency Stop Button | Hopper Both Sides | |||||||||
The above mentioned figures are approximate.
- ※Optional equipments are included in these photographs
- ※Specifications and dimensions are subject to change without notice.
- ※1Material : Anti-corrosion Steel
- ※2Material : Anti-corrosion Steel or High-tensile Steel
- ※3Material : High-tensile Steel

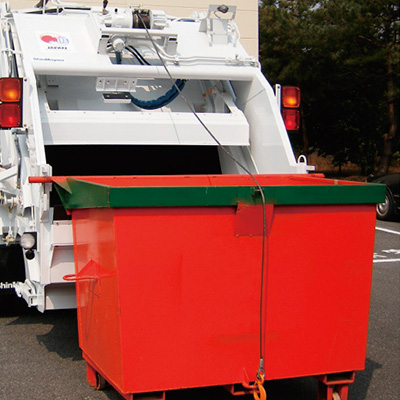

Bin Lifters
ShinMaywa Industries, Ltd.
Contact us today for detailed specifications, options information or other information on ShinMaywa products.
