ELEPARK is ShinMaywa's signature fully automated parking system, built on the company's engineering know-how and operational experience. Its compact footprint increases usable area and reduces basement floors and overall construction costs.

ELEPARK(ShinMaywa) elevator-type parking system how to work

[Playback time: 1 min. 6 sec.]

Introduction of ShinMaywa ELEPARK

[Playback time: 6 min. 32 sec.]

1

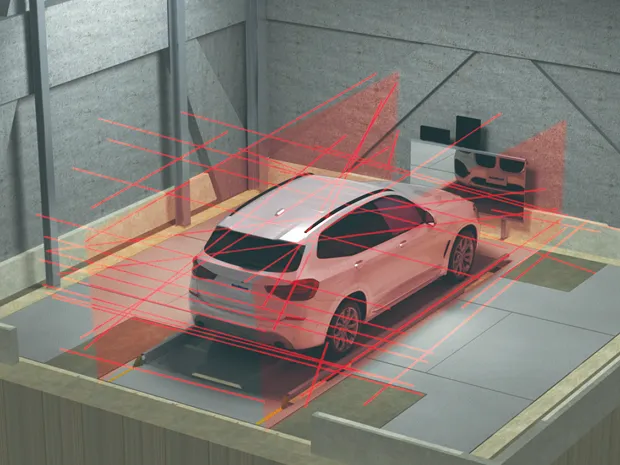

Safety & Reliability

Built to Japan's strict standards and ShinMaywa's standards

Compliant with Japan's rigorous safety standards, our systems incorporate ShinMaywa's proprietary multi-layered safety protection. Each entrance cabin is equipped with over 30 safety sensors, ensuring thorough protection while supporting localized specifications—without compromising safety or quality.
2

Compact Design & Impact Capacity

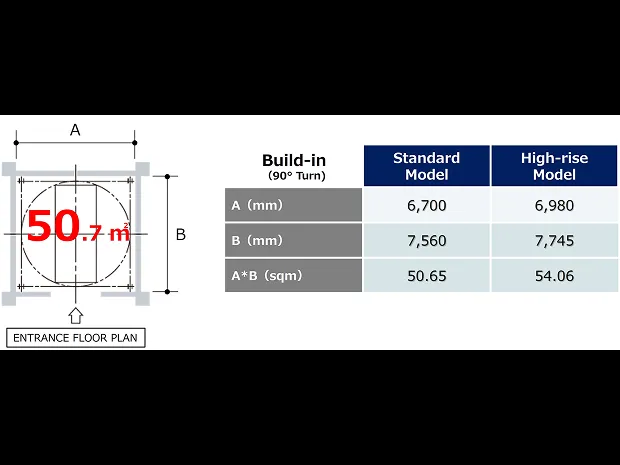

Only 50.65 m² Footprint for 40 SUVs

Maximizing land-use efficiency for urban developments:
Ex)　・ 40 SUVs with 50.65 m² footprint
　　・100 SUVs with 54.06 m² footprint
3

High-Speed Lift Operation

Consistent Performance for Large-Capacity Towers

ELEPARK uses a high-speed lift system to keep operations smooth and efficient.
　・Standard Model: 60–120 m/min (automatic speed control)
　・High-rise Model: 120 m/min
Estimated average retrieval time per vehicle:
　　40 SUVs : approx. 1 min 35 sec.
　 100 SUVs : approx. 2 min 13 sec.
4

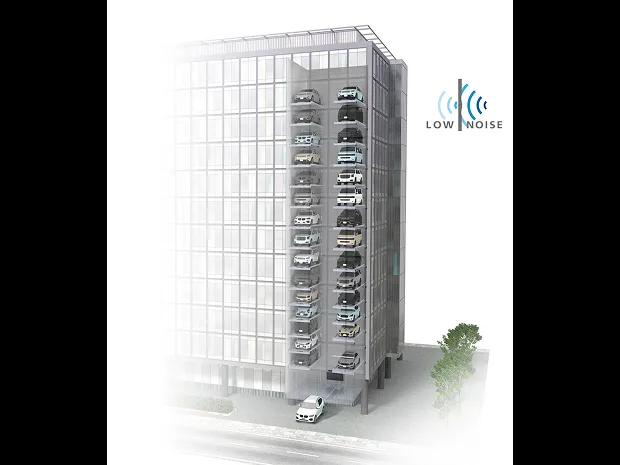

Eco-Friendly Design

Low noise specifications (Optional)

We offer optional noise-reduction features for projects that require quiet operation:
・Low-noise main motor.
・Reduced operating sound through inverter control,etc.
・Night-mode low-speed operation for reduced noise.
5

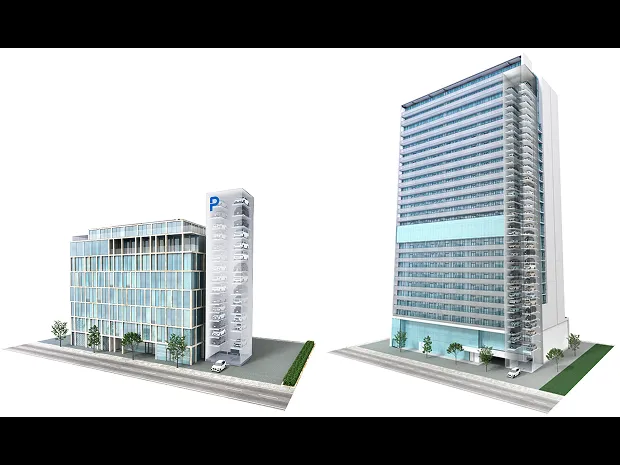

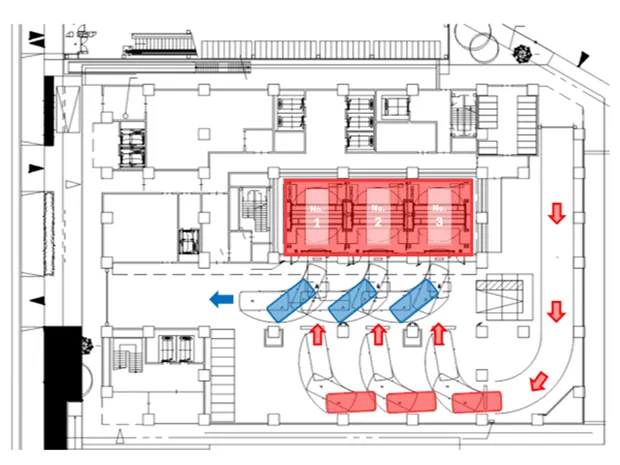

Expandable Architecture

Linked Units for Efficient Expansion

When additional capacity is required, multiple units can be linked to expand parking. This helps keep each unit's height lower while preserving upper-floor area. The Group Control option—which synchronizes operation across units—further improves efficiency.
6

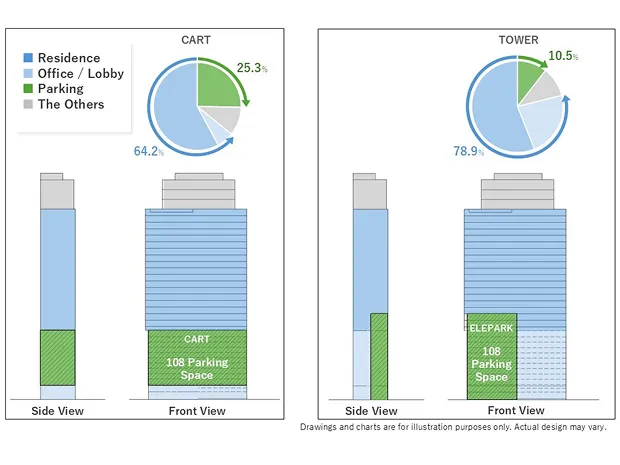

Building Value Enhancement

Contributing to Usable Area and Cost Savings

The rise of high-rise buildings and diversified project requirements has made parking a key factor in overall building value. ELEPARK contributes to securing usable floor area and reducing overall project costs. Reducing the number of basement floors also minimizes ancillary facilities such as MEP, elevator halls, and fire-protection equipment.
7

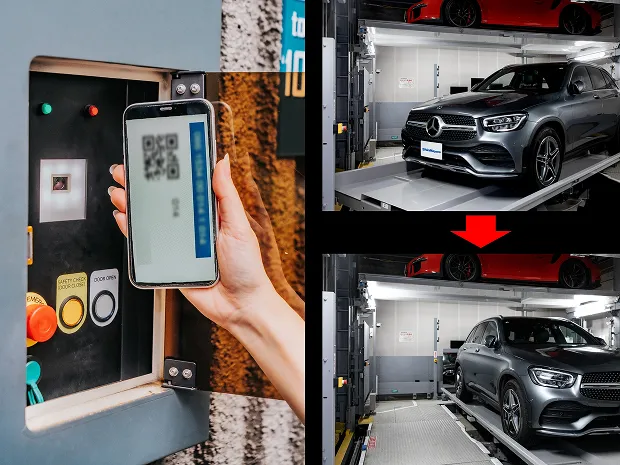

User-Friendly Operation

Smooth entry and exit

ELEPARK enhances user convenience with simple QR code calling and forward-only entry and forward-only exit. The platform automatically rotates the vehicle inside the system, eliminating the need for reverse parking and reducing operational stress.
