Energy Saving Proposal by Replacing CNWX Pumps

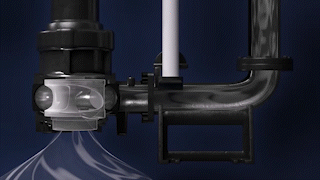

High Pass-through Performance

Reduces the need to remove blockages caused by foreign material, helping to cut maintenance and inspection costs.

High Pump Efficiency

Enables the use of a pump with an output one or two ranks below the existing unit (depending on specifications).

Comparison of Blockage Frequency

City B Manhole Type Pumping System

Vortex Submersible Pump
(Bore: 80 mm x 2.2 kW)

Basket is installed at inlet

Requires cleaning

Frequency of pump blockages

7 times/year

(Blockage items: underwear, towels, disposable diapers, etc.)

Replacement

Non-Clog Scroll^® Submersible Pump
(Bore: 80 mm x 2.2 kW)

Basket is removed, cleaning is not required Frequency of pump blockages: 1 time/year

Depending on the conditions, not all foreign material may pass through.

Comparison of Output Reduction

Comparison of output reduction between CNWX651 Non-Clog Scroll^® Submersible Pump and CVM65 Vortex Pump

Vertical axis: Total head (m) / Horizontal axis: Discharge rate (m³/min)

Examples

• Toyota City



  Our CNWX series High Efficiency and Good Passthrough Performance Submersible Pump are used in the public sewage system of the city to reduce electricity consumption and ensure stable operation.

• Electricity Charges for Manhole Type Pumping System

  		Existing Vortex	CNWX
  Operating total flow	(m3/month)	1,550
  Pump discharge flow	(m3/min)	0.249	0.308
  Operating hours	(hr/month)	103.7	83.9
  Motor output	(kW/Unit)	7.5	3.7
  Q'ty of pump	(Unit)	2
  Electricity consumption	(kW)	17	9
  Electricity charges	(JPY/month)	25,587	12,274

  Comparison of electricity charges after replacement of Vortex Submersible Pump with CNWX Non-Clog Scroll^® Submersible Pump



• Application: Apartment Manhole Type Pumping System Barton Court, UT



  Reduce
  Clogging Problem
  and
  Electricity
  Consumption

  Cutter Pump
  (4P, 4.3HP, 1Ph)

  Problem

  Clogging Every Month

  Debris

  Feminine sanitary product, etc.



  Competitors Cutter Pump



  CNWX
  (3" Solid Size, 2HP)

  Clogging problem solved, No Clogs since May. 2010, reduced maintenance cost electrical cost.



  CNWX Non-Clog Scroll
