Wastewater Pumps

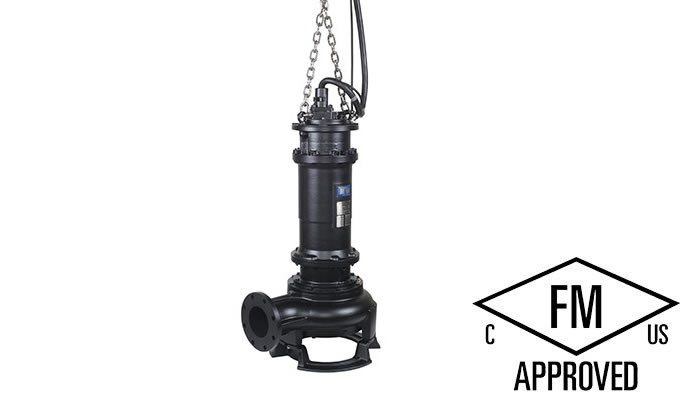

CNWX (2-10HP, 3"-6" Non-Clog Scroll)

ShinMaywa (America), Ltd. offers the CNWX series of heavy-duty, non-clog submersible pumps for the industrial and municipal wastewater markets.
These pumps feature the revolutionary new single vane non-clog scroll impeller design from ShinMaywa Industries, Ltd. (Japan). The scroll impeller design incorporates a helix formed passage at the inlet which is smoothly connected to the single vane non-clog passage. This design virtually eliminates clogging, plugging, and entangling of fibrous materials resulting in reduced maintenance costs and electrical power consumption.
Non-clog scroll impeller equipped CNWX pumps have already solved several clogging problems in commercial and municipal applications.

Non-Clog Scroll Submersible Pump    CNWX series

Non-Clog Scroll Submersible Pump CNWX Video

"High pass-through capability (Pass-through test)"
[Play Time: 2minutes 06seconds]

"An actual case in Toyota City"
[Play Time: 2minutes 33seconds]

CNXH (15-50HP, 4" High head type)

ShinMaywa (America), Ltd. offers CNXH series of heavy-duty, solid handling submersible pump with single vane enclosed impeller for municipal, commercial and industrial wastewater markets.
These pumps achieve a high head by employing our new developed single vane enclosed 3" solid passage impeller.
These pumps has good pump characteristic with no overload in its operation range.
Operation range is 79.2 - 1739 US gpm, 23 - 211ft total head.

High head type submersible pump CNXH series

High head type submersible pump   CNXH series

CNX/CNXH Brochure[PDF/2.55MB]

Please ask to our distributor for municipal warranty.

CNX (15-30HP, 6" High flow type)

ShinMaywa (America), Ltd. offers CNX series of heavy-duty, solid handling submersible pump with double vane enclosed impeller for municipal, commercial and industrial wastewater markets.
These pumps include our new 3" solid handling impeller which has a high efficiency in its operation range.
These pumps has good pump characteristic with no overload in its operation range.
Operation range is 158.5 - 1739 US gpm, 19 - 113 ft total head.

High flow type submersible pump CNX series

High flow type submersible pump   CNX series

CNX/CNXH Brochure[PDF/2.55MB]

Please ask to our distributor for municipal warranty.
